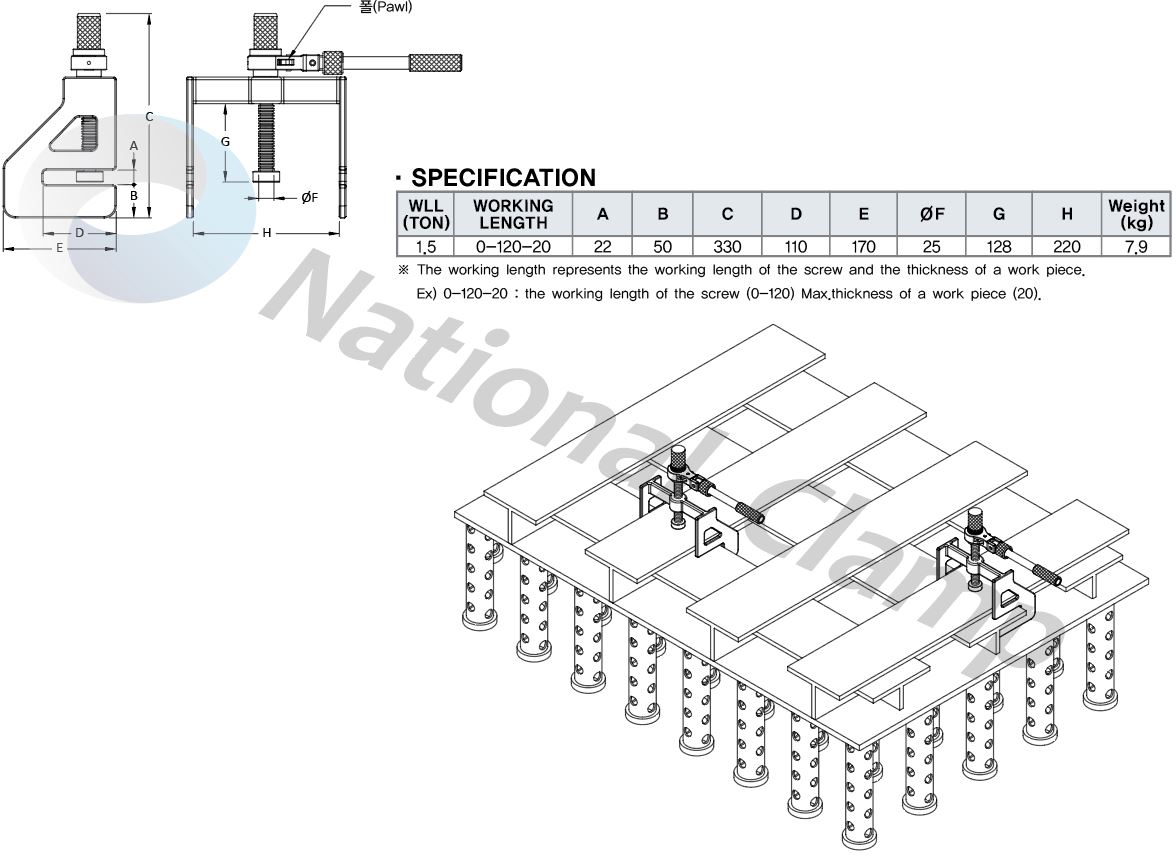

NPP-A

· Application

  - A ratchet press used instead of a jig when attaching L- and T-sections (frames) to the outer plating, the inner plating and the deck of a

    ship.

· Features

  - A ratchet press designed to be suitable for attaching another frame by hanging the NPP-A on the already welded low frame.

  - The NPP-A is designed not to be pushed due to the swivel jaw assembled to the end part of the screw when operating the handle.

  - The NPP-A can be customized according to the width and height of section steel.

· How to use

  - After inserting the press jaw opening into the end part of the section steel flange, push up or down the pawl according to purposes and

    then operate the handle.

· Warnings

  - Do not exceed the rated capacity specified on the ratchet press.

  - Use a work piece only which falls within the working length range specified in the instruction manual.

  - Before use, always check the rotating condition of the jaw and the screw, and the grease injection condition.

  - Store the NPP-A in a dry place with no water or moisture to prevent it from being rusty.
