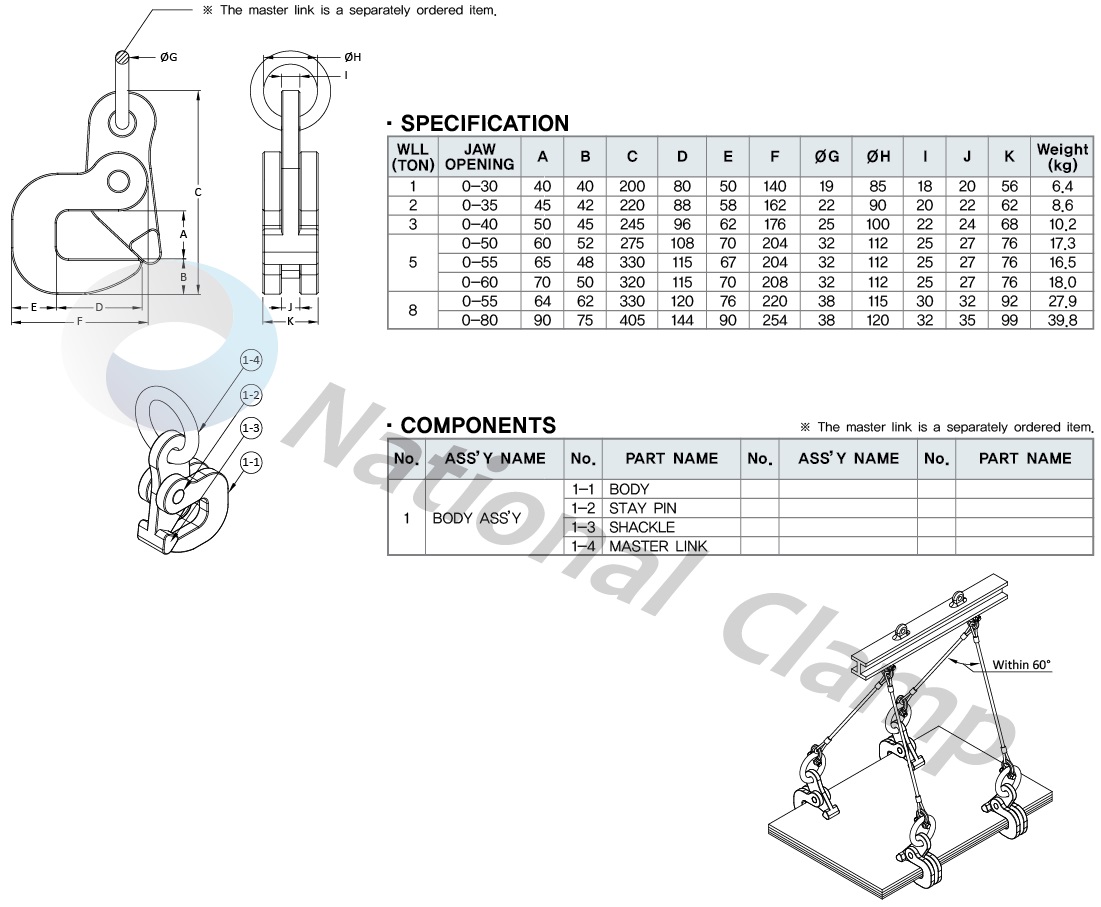

NSMY-SP

· Application

- An unloading horizontal lifting clamp for loading and unloading a variety of steel plates.

· Features

- Easy and convenient to use because the NSMY-SP has no safety latch.

- An efficient clamp to use. As long as the jaw opening range specified on the clamp is satisfied, the NSMY-SP can lift

  multiple steel plates at the same time.

· How to use

- For the NSMY-SP, the clamping points must be 4 or more and then lift a work piece.

- Insert a steel plate into the inside end of the clamp’s jaw opening and then lift.

- Clamp the center of gravity of a work piece in order to equally distribute the weight of the work piece.

· Warnings

- Do not exceed the rated capacity specified on the clamp.

- Lift a work piece only which falls within the jaw opening range specified in the instruction manual.

- Never lift a work piece with two or less clamps.

- For the NSMY-SP, use a balance beam. Use sling wires of the same length. Lift a work piece only after checking the

  biting location, the biting condition and the proper functioning.

- When lifting a work piece, a signal man must be outside the rotation radius of a work piece to send a signal to a crane

  operator.
